Querying the YSE_PZ Database

This is a quick overview for running queries against the YSE-PZ database.

Running Queries with SQL Explorer

YSE-PZ uses SQL Explorer to allow users to query its database. The link http://127.0.0.1:8000/explorer allows users to see queries from other users and write their own (links assume the default URL for running the server locally). Please see additional documentation through the SQL Explorer link.

When writing a new query http://127.0.0.1:8000/explorer/new/, the show schema button provides a way to view each database table for YSE-PZ. However, because the YSE-PZ model is complex, and we summarize the most useful transient tables below.

The YSE-PZ Data Model

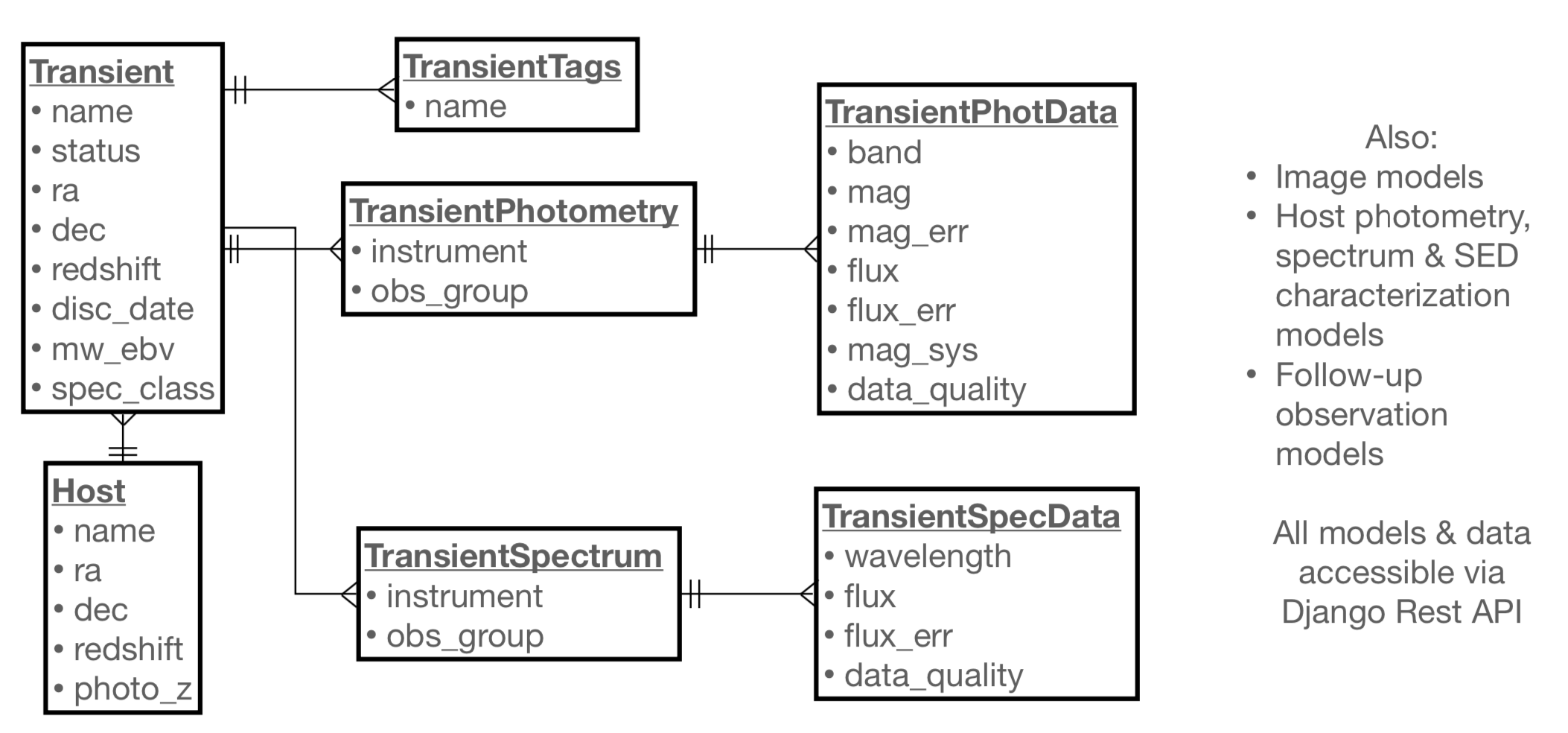

The central table for transient data in YSE-PZ is the YSE_App_transient table, which in turn is connected to a tags model, a Host model, and TransientPhotometry and TransientSpectrum models (photometry and spectrum models for host galaxies also exist). These relationships are summarized below. The TransientTags model exists such that YSE-PZ users can apply various tags to note attributes of objects that they are interested in through the Detail Pages.

Writing Simple Database Queries

A few example queries are provided here: Example SQL Queries for YSE-PZ. These examples demonstrate common use cases as well as the relationships between the various database tables.

Writing Python-Based Queries on the YSE-PZ backend

Occasionally, writing queries in raw SQL can be much more difficult than using Django’s python-SQL interface (especially for Astronomers!). For these cases, users familiar with django can add tagged queries to the YSE_App/queries/yse_python_queries.py by writing a function using the @python_query_reg decorator. Each function should return a Django “queryset” object. A brief example of two of the queries above in Django/Python language is below.

Every spectroscopically classified SN Ia in the last 30 days:

@python_query_reg
def recent_spec_class():
    qs = Transient.objects.filter(Q(disc_date__gt=datetime.datetime.now()-datetime.timedelta(days=30)) &
                                  Q(TNS_spec_class='SN Ia'))
    return qs

Every SN that was brighter than 18th mag in the last week:

from django.db.models import Count, Value, Max, Min, F # useful aggregation methods

@python_query_reg
def recent_bright_mag():

    qs = Transient.objects.filter(~Q(transientphotometry=None))
    qs = qs.filter(Q(transientphotometry__transientphotdata__mag__lt=18) &
            Q(transientphotometry__transientphotdata__obs_date__gt=datetime.datetime.now()-datetime.timedelta(days=7)))

    qs2 = Transient.objects.filter(name__in=qs.values('name').distinct())

    return qs2

Adding Queries to a User’s Personal Dashboard

Queries can be added to a user’s “Personal Dashboard” located at the http://127.0.0.1:8000/personaldashboard link via the form at the bottom of the page. SQL queries created via the SQL Explorer can be selected with the left-hand dropdown menu and Python-based queries can be selected on the right-hand side (the title of the function is the name of the query). Queries can be removed via the trashcan button next to each query.
